| 工作原理 | 電子式 |
|---|---|
| 類型 | 智能功率測量儀表 |
| 相數 | 三相 |
| 結構型式 | 整體式 |
| 準確度等級 | A |
| 參比電壓 | 380V |
| 品牌 | 方登 |
| 型號 | 三相 |
| 加工定制 | 是 |
| 電源性質 | 直流表 |

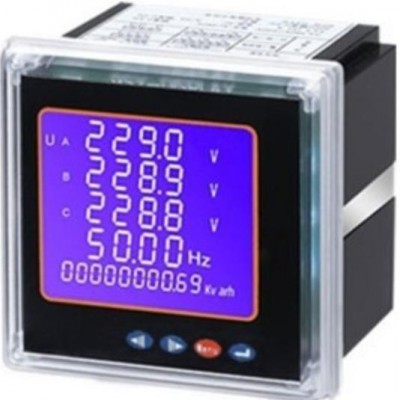

產品型號：FD-96S3D/LW
Product model: FD-96S3D/LW
功能： 三相相電壓：UA、UB、UC， 三相線電壓：UAB、UBC、UCA三相電流：IA、
IB、IC，有功功率：每相有功功率和總有功功率
無功功率：每相無功功率和總無功功率。檢測1路漏電功率因素：每相功率因數和總功
率因數。檢測4路溫度電網頻率，有功電能，無功電能 通訊輸出：RS485 Function: three phase voltage: UA,UB,UC,three phase line voltage: UAB,
BC,UCA,Three phase current: IA,IB,IC,active power: active power and total active power of each phase,Reactive power: reactive power and total reactive power of each phase. Detect 1 circuit leakage,Power factor: power factor of each phase and total power factor. Detect 4 - way temperature, Grid frequency,active power,reactive power,communication output: RS485
產品型號：FD-120Y3D/LW
Product model: FD-120Y3D/LW
功能：三相相電壓：UA、UB、UC 三相線電壓：UAB、UBC、UCA 三相電流：IA、IB、IC，有功功率：每相有功功率和總有功功率無功功率：每相無功功率和總無功功率。檢測1路漏電 功率因素： 每相功率因數和總功率因數。檢測4路溫度 電網頻率， 有功電能，無功電能， 通訊輸出：RS485
Function: three phase voltage: UA,UB,UC,three phase line voltage: UAB, UBC,UCA,Three phase current: IA,IB,IC,active power: active power and total active power of each phase,Reactive power: reactive power and total reactive power of each phase.Detect 1 circuit leakage,Power factor: power factor of
each phase and total power factor. Detect 4 - way temperature, Grid
frequency,active power,reactive power,communication output: RS485
