| 材料 | 不銹鋼 |
|---|---|
| 產水量 | 1000L/h |
| 電壓 | 380V |
| 進水口徑 | 32 |
| 適用對象 | 水 |
| 顏色 | 白色 |
| 品牌 | 上海惠源 |
| 型號 | HY-1000 |
| 加工定制 | 是 |
| 加工定制:是 | 操作壓力:1.0（Mpa） |
| 水電阻率:15 | 出水量:1000升 |
| 外形尺寸:7000*4000（cm） | 電壓:380（V） |
| 水質:超純水 | 功率:10000（w） |
| 電導率:0.07 | 脫鹽率:99.85（%） |
| 單機出力:1000升（/h） | 加工定制: |
| 操作壓力: | 水電阻率: |
| 出水量: | 外形尺寸: |
| 電壓: | 水質: |
| 功率: | 電導率: |
| 脫鹽率: | 單機出力: |
主要工藝流程和出水指標：
Main technical process and standard of output water
※預處理+反滲透+離子交換器（電阻率≥15MΩ.CM）
Pre-treatment+ stage reverse osmosis system+ion exchange (electric conductivity≥15MΩ.CM）
※預處理+二級反滲透+EDI（電阻率≥15MΩ.CM）
Pre-treatment+ stage reverse osmosis system+EDI (electric conductivity≥15MΩ.CM）
※預處理+二級反滲透+脫氣膜+EDI +拋光混床（電阻率≥18.25MΩ.CM）
Pre-treatment+ double stage reverse osmosis system+air film+EDI +polishing mixed bed (electric conductivity≥18.25MΩ.CM）
詳細工藝需根據原水設計情況進行設計
Details of the design process should be carried out according to the feed water quality.

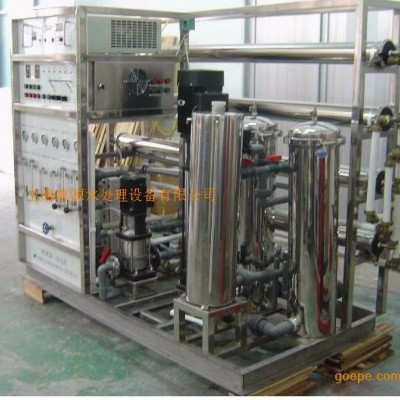

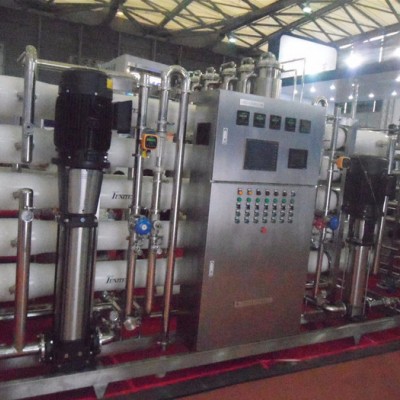

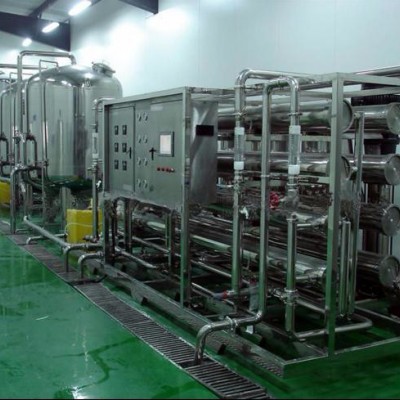

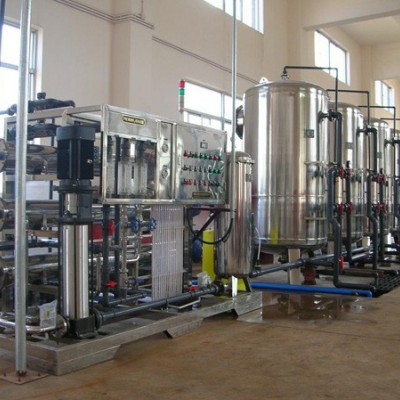

純水設備的主要特點
Main technics of pure water treatment equipment
▼結合電子工業用水連續生產的特性，采用了全膜法處理工藝（UF+RO+EDI）完成高純水的制備工作； The electronics industry with the characteristics of continuous production of water, using the entire membrane treatment process (UF + RO + EDI) to complete the preparation of highly pure water work; ▼對于電子行業用水的特性，增強了對水中二氧化硅、重金屬和有機碳的脫除； For the water features of electronics industry , enhanced to removal silica, heavy metals and organic carbon in water. ▼采用了氮封水箱解決了電子工業用水要求較高，水的儲存容易污染問題； Using nitrogen sealed water tanks to solve the problems of electronics industry require a higher water use, water storage easy to pollution ; ▼采用進口反滲透膜，脫鹽率高，使用壽命長，運行成本低廉，產水水質高而穩定； Adopted import reverse osmosis membranes, desalination rate is high, long service life, the operation cost is low, the output water quality is high and stable. On-line water quality monitoring and control, real-time monitoring of water quality to ensure safety of water quality. Automatic control procedure, also equipment with touch screen operation, easy to use, the operation is simple, safe. Correspond with the local water personalized design, considerate stackable design, small floor area, which can meet considerate needs. ▼運行費用及維修成本低，全自動運行，實現無人化管理操作。 Operating costs and maintenance cost low, automatic operation, can realize unmanned management operations. |
